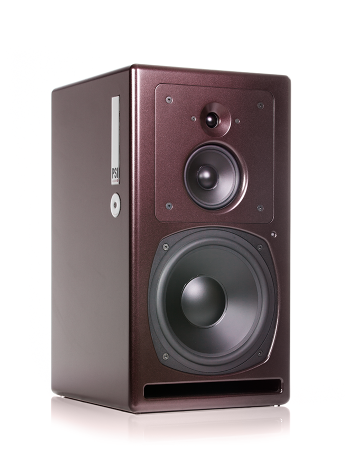

PSI Audio А25-Master Red Студийный монитор

 Активный 3-пол. студийный монитор

Power RMS: 170 + 80 + 50 W

Program Power: 300 W

Input Impedance: Sym, 10k Ohms

Sensivity for 100 dB @ 1m: 0.775 V

Signal to Noise Ratio: -96 dBA

Continuous Max SPL@1m: 110 dB (single)

Input Overload: 24 Vpp

Program Max SPL@1m: 121 dB (pair)

Response at -6dB: 32 - 23000 Hz

Tolerances: ±1.5 dB (38Hz - 20kHz)

Distortion THD: < 1% (70Hz-20kHz)

Phase tolerances: ±45° (150Hz - 20kHz)

Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 80° (H x V)

System: 3 Way(s)

Crossover frequency: 580Hz, 3.1kHz

Woofer's dim. Ext. / Diaphragm: Ø 258 mm / Ø 210 mm

Medium's dim. Ext. / Diaphragm: Ø 142 mm / Ø 102 mm

Tweeter's dim. Ext. / Diaphragm: Ø 100 mm / Ø 25 mm

Connectors: 1 x XLR F / 3P

Signal input:  1=GND, 2=(+), 3=(-)

Material: MDF

Dimensions W x H x D mm: 320 x 590 x 380

Gross / Net Weight: 32.1 / 28.4 kg

Voltage: 115/230V (50-60Hz)

Consumption Standby-Quiescent-Max: 1.8 - 8 - 200 W

Mean / Max Humidity: < 75% / < 90%

External Temperature: 5 - 40°C
